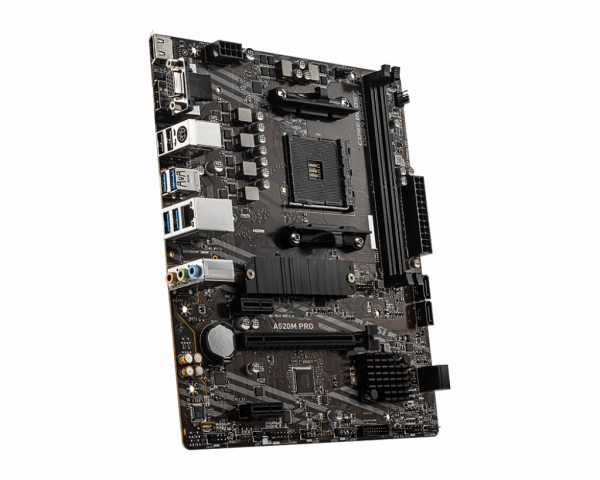

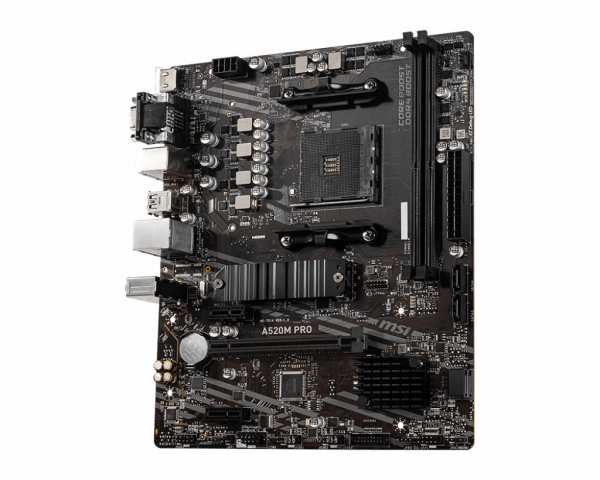

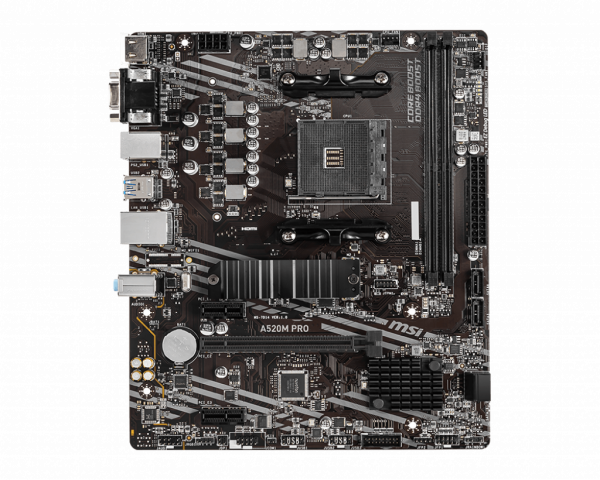

MB AM4 MSI A520M-A PRO
Šifra: 27953
- Proizvod iz grupe: MATIČNE PLOČE
- Proizvođač: MSI
- Dostupna količina: 11
Maloprodajna cena:
6.468,00 rsd.
WebCena:
6.468,00 rsd.
CPU
Supports AMD Ryzen™ 5000 & 3000 Series desktop processors and AMD Ryzen™ 4000 G-Series desktop processors
CHIPSET
AMD A520 Chipset
MEMORY
- 2x DDR4 memory slots, support up to 64GB 1
- Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
- Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
- 1DPC 1R max speed 4600 MHz
- 1DPC 2R max speed 3866 MHz
- Dual channel memory architecture
- Supports non-ECC UDIMM memory
- Supports ECC UDIMM memory (non-ECC mode)
- Supports un-buffered memory
- Please refer www.msi.com for more information on compatible memory.
EXPANSION SLOT
- 1x PCIe x16 slot (PCI_E2) 1
- 2x PCIe 3.0 x1 slots
- The supported specification depends on installed processor.
ONBOARD GRAPHICS
- 1x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz2
- 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160@60Hz1 2
Support HDCP 1.4 & 2.3 - 1x DisplayPort 1.4 port, supports a maximum resolution of 4096x2160 @60Hz1
- Maximum shared memory of 16GB
- Graphics specifications may vary depending on the CPU installed
- Available for the processor with integrated graphics.
STORAGE
AMD A520 Chipset
- 4x SATA 6Gb/s ports
- 1x M.2 slot (Key M) (from AMD Processor)
- M2_1 slot (from AMD Processor)
- Supports PCIe 3.0 x4 1
- Supports SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
- M2_1 slot (from AMD Processor)
- The supported specification depends on installed processor.
RAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
USB
AMD A520 Chipset
- 2x USB 3.2 Gen 1 5Gbps ports (2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
- 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
- 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
AUDIO
Realtek® ALC892/ALC897 Codec
- 7.1-Channel High Definition Audio
LAN
- 1x Realtek® RTL8111H LAN controller
INTERNAL CONNECTORS
- 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
- 4x SATA 6Gb/s connectors
- 1x Serial port connector
- 1x M.2 slot (M-Key)
- 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin system fan connector
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1x 4-pin RGB LED connector
- 1x 3-pin RAINBOW LED connector
- 1x TPM module connector
- 1x Clear CMOS jumper
BACK PANEL PORTS
- VGA
- Keyboard / Mouse
- LAN port
- HDMI
- DisplayPort
- USB 2.0 Ports
- USB 3.2 Gen 1 5Gbps Type-A
- USB 3.2 Gen 1 5Gbps Type-A
- Audio Connectors
DIMENSIONS
- M-ATX Form Factor
- 9.6 in. x 8.3 in. (24.4 cm x 21 cm)
MOUNTING
6 mounting holes
BOX CONTENT
- MSI® does not guarantee the risks or damages caused by changing the cover.
- These pictures are for reference only and may vary without notice.
| Tip procesora: | AMD |
| Podnožje: | AMD® AM4 |
| Čipset: | AMD® A520 |
| Format ploče: | Micro ATX |
| Podržana memorija: | DDR4 |
| Podržani procesori: | - Podržava AMD Ryzen 5000 i 3000 serije desktop procesora (nije kompatibilno sa AMD Ryzen 5 3400G i Ryzen 3 3200G) i AMD Ryzen 4000 G-Seriju desktop procesora |
| Memorija: | - 2 x DDR4 memorijska slota, podržava do 64GB - Podržava DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC - Podržava DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE - 1DPC 1R max. brzina 4600 MHz - 1DPC 2R max. brzina 3866 MHz - Dual channel memory architecture - Podržava non-ECC UDIMM memoriju - Podržava ECC UDIMM memoriju (non-ECC mode) - Podržava un-buffered memoriju |
| Integrisana grafička karta: | - 1 x HDMI 2.1 port, podržava maksimalnu rezoluciju od 4096x2160 @60Hz - 1 x DVI-D port, podržava maksimalnu rezoluciju od 1920x1200 @60Hz - Maksimalna deljena memorija 16GB |
| Slotovi za proširenje: | - 1 x PCIe 3.0 x1 slot - 1 x PCIe x16 slot |
| Skladište: | AMD A520 Chipset - 4 x SATA 6Gb/s porta - 1 x M.2 slot (Key M) (od AMD procesora) - Podržava PCIe 3.0 1 - Podržava SATA 6Gb/s - Podržava 2242/ 2260/ 2280 storage uređaje |
| Mrežna karta: | - Realtek RTL8111H Gigabit LAN kontorler |
| Zvučna karta: | - Realtek ALC892/ALC897 Codec - 7.1-Channel High Definition Audio |
| USB: | AMD A520 Chipset: - 2 x USB 3.2 Gen 1 5Gbps porta dostupna putem internog USB 3.2 Gen 1 5Gbps konektora - 6 x USB 2.0 portova (2 Type-A porta na zadnjem panelu, 4 porta dostupna putem internih USB 2.0 konektora) AMD Processor: - 4 x USB 3.2 Gen 1 5Gbps Type-A porta na zadnjem panelu |
| Konektori na zadnjoj strani: | - LAN port - HDMI - DVI-D - Keyboard / Mouse - USB 3.2 Gen 1 5Gbps Type-A - USB 3.2 Gen 1 5Gbps Type-A - USB 2.0 Ports - Audio konektori |
| Interni konektori: | - 1 x 24-pin ATX glavni konektor za napajanje - 1 x 4-pin ATX 12V konektor za napajanje - 4 x SATA 6Gb/s konektora - 1 x M.2 slots (M-Key) - 1 x USB 3.2 Gen 1 5Gbps konektor (podržava dodatna 2 USB 3.2 Gen 1 5Gbps porta) - 2 x USB 2.0 konektora (podržava dodatna 4 USB 2.0 porta) - 1 x 4-pin CPU fan konektor - 1 x 4-pin system fan konektor - 1 x Front panel audio konektor - 2 x System panel konektora - 1 x Chassis Intrusion konektor - 1 xTPM module konektor - 1 x Clear CMOS jumper |
| Prava potrošača: | Zakonska saobraznost 2 godine + 1 godina dodatne proizvođačke garancije uz garantnu izjavu proizvođača |
| EAN: | 4719072749927 |
