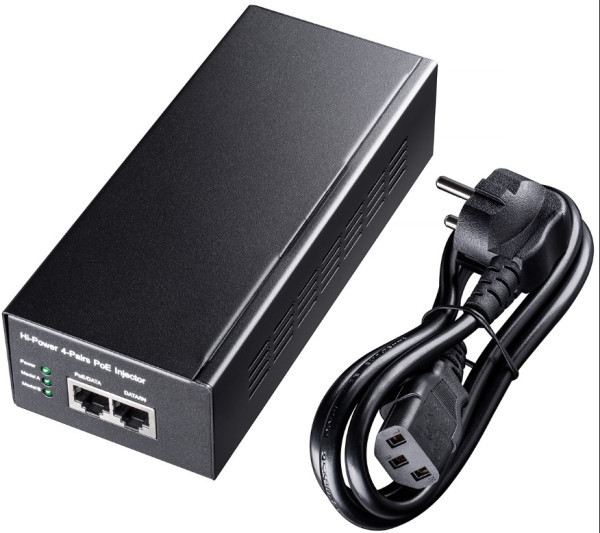

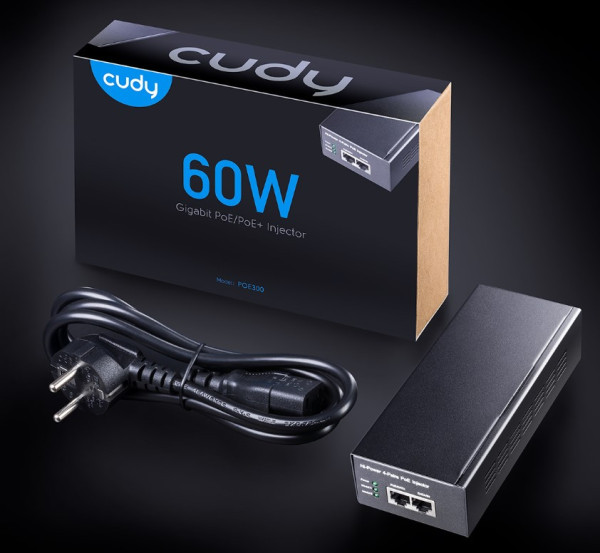

Cudy POE300 60W Gigabit PoE+/PoE Injector, 802.3at/802.3af Standard, Data and Power 100 Meters

60W Gigabit PoE+/PoE Injector
-Up to 60 watts PoE power supply
-1 10/100/1000M Ethernet Input port
-1 10/100/1000M PoE Output port
-IEEE 802.3at / IEEE 802.3af standard compliant
-Plug&play, simple setup with no configuration needed

Model POE300
No. of channels 1
Pass Through Data Ratesi 10/100/1000Mbps
Power over Ethernet Output
Pin Assignment and Polarity: 1/2 (-), 3/6 (+),4/5 (+), 7/8 (-),
Output Power Voltage: 50Vdc
User Port Power: 60W
Input Power Requirements AC Input Voltage: 100 to 240 VAC
AC Input Current: 0.5A 100-240 VAC
AC Frequency: 50 to 60 Hz
Dimensions 145mm x 60mm x 40mm
Indicators System Indicator: AC Power
User Indicator: Channel Power
Connectors Shielded RJ-45, EIA 568A and 568B
Regulatory Compliance IEEE 802.3af (15.4W)
IEEE 802.3at (30W)
IEEE802.3at 4Pairs(60W)
Environmental Conditions Operating Ambient Temperature:0 to 45c
Operating Humidity:Maximum 80%, Non-condensing
Storage Temperature:-20 to 70c
Storage Humidity:Maximum 80%, Non-condensing
